Our selection of centrifugal pumps in single-stage or multi-stage design.

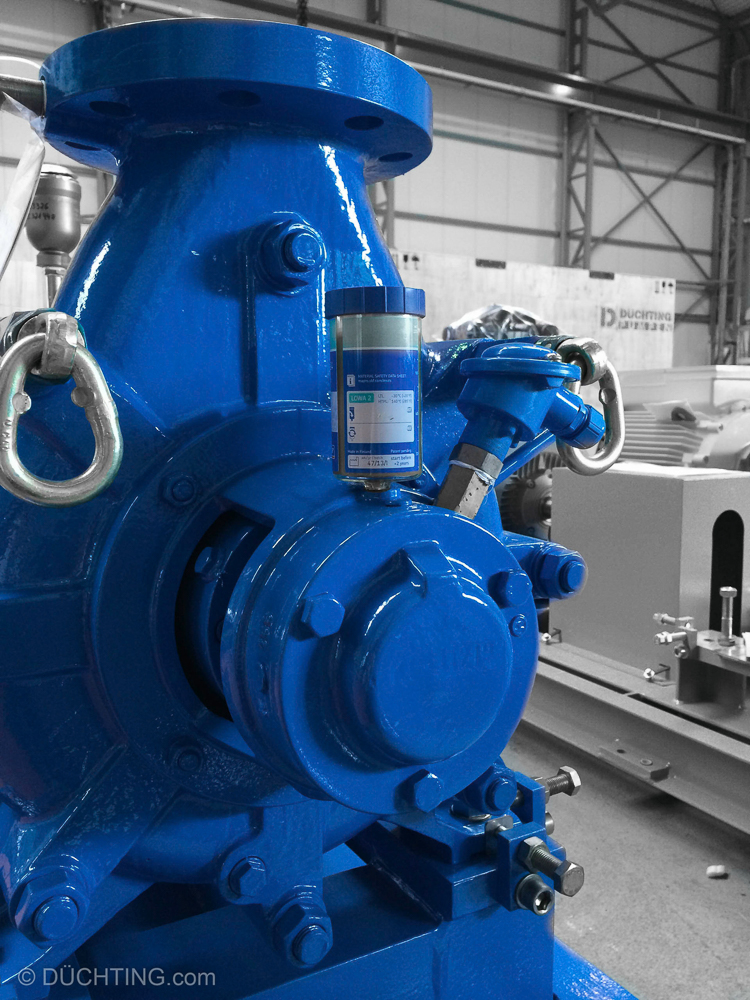

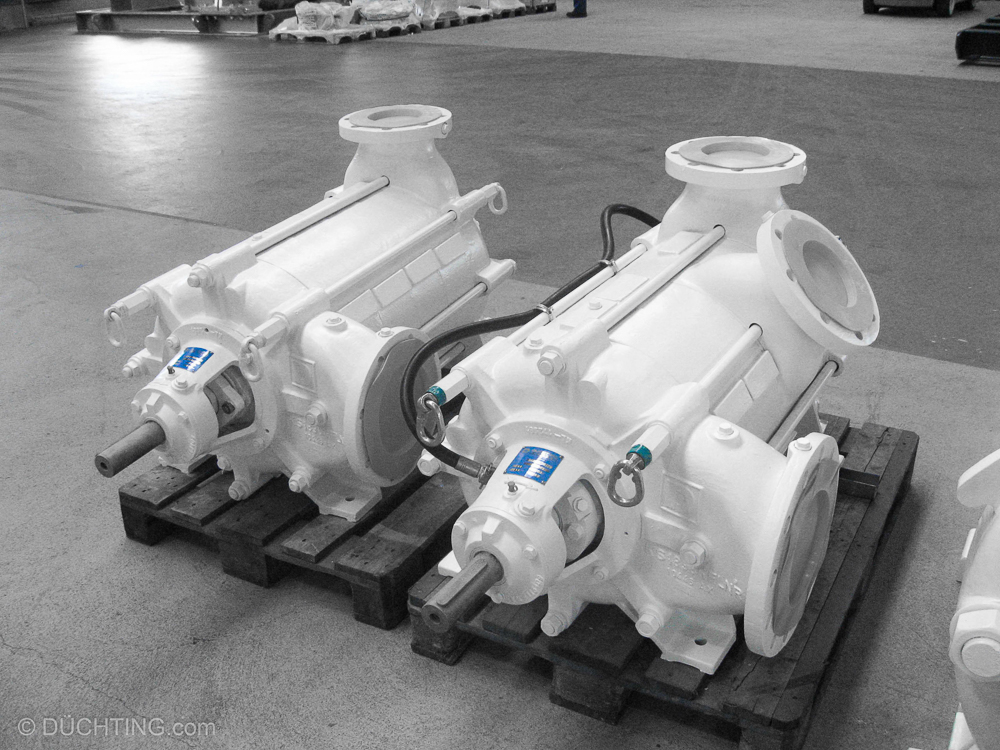

TyPE hpxl

Multi stage centrifugal pump in ring-section design.
  • Flanges positioned at 90 ° increments
  • Shaft sealing by stuffing box or mechanical seal
  • Axial thrust compensation by individually balanced impellers
  • Designed for 4-pole speed
  • Reduced life-cycle costs
  • Grease or oil-lubrication available
  • Tailormade solutions available:
    • Pump dimensions can be adapted to customer requirements
    • Single or double inlet suction casing available
    • Discharge flanges available on intermediate stage casings
    • Drive from one or both shaft ends possible
  • Closed impeller with three-dimensionally curved blades
  • Impeller fixed with fitting key

Technical Data

Pump Size: 1 1/4″ to 12″
max. Pressure: 580 PSI
max. Flow: 11000 gpm
Total head: up to 1300 ft
Rotating speed: to 3600 rpm



Fields of Application

Handling of contaminated, chemically neutral or aggressive liquids with up to 10% solids.

  • Main water drainage in mining
  • In addition to drainage and mine weather cooling in mining
  • Pressure boosting systems in industrial processes
  • Water supply and water treatment plants
  • Condensate production
  • Mineral industry
  • Oil & Gas Applications

Materials

Available in almost any metallic material designs from cast iron to SUPER DUPLEX stainless steel.

The materials are carefully selected depending on the application, the pumped medium and the combinations of materials adapted to the respective conditions of use.

Standards & Approvals

Manufactured according to DIN / ASME

Certificates API BB4 610 ISO
