Product

PORTFOLIO

Our selection of centrifugal pumps in single-stage or multi-stage design.

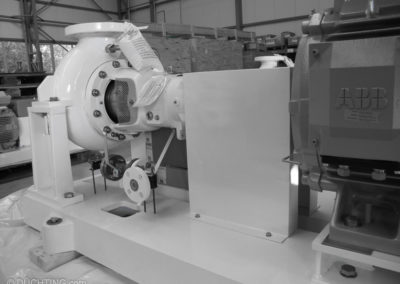

TyPE IP

Single stage end-suction, centrifugal pumps.
  • Horizontal centerline mounted
  • Back pullout design (the complete rotating assembly can be removed while the casing remains on its position)
  • Continuous operation in industrial processes for pumping clean and corrosive liquids
  • Double volute casing for extended bearing and seal life time
  • Wear rings in composite material to maintain best efficiency and reliability
  • Pump casing design up to 100 bar
  • Oil or grease lubricated bearings
  • Cartridge mechanical seal, seal plan as per API
  • Vertical installation optional available
  • Design in accordance with API 610 if specified

Technical Data

Pump Size: 2 1/2″ to 18″
max. Pressure: 1450 PSI
max. Flow: 18500 gpm
Total head: up to 720 ft
Rotating speed: to 3600 rpm

Fields of Application

Suitable for handling of slightly abrasive and corrosive liquids.

  • Pressure boosting systems in industrial processes
  • Water supply, and water treatment plants
  • Seawater desalination plants
  • Hot water applications
  • Oil & Gas – Applications
  • Feed water circulation

Materials

Available in almost any metallic material designs from cast iron to SUPER DUPLEX stainless steel.

The materials are carefully selected depending on the application, the pumped medium and the combinations of materials adapted to the respective conditions of use.

Standards & Approvals

Manufactured according to ISO, DIN and ASME (API 610/ ISO 13709 possible)
